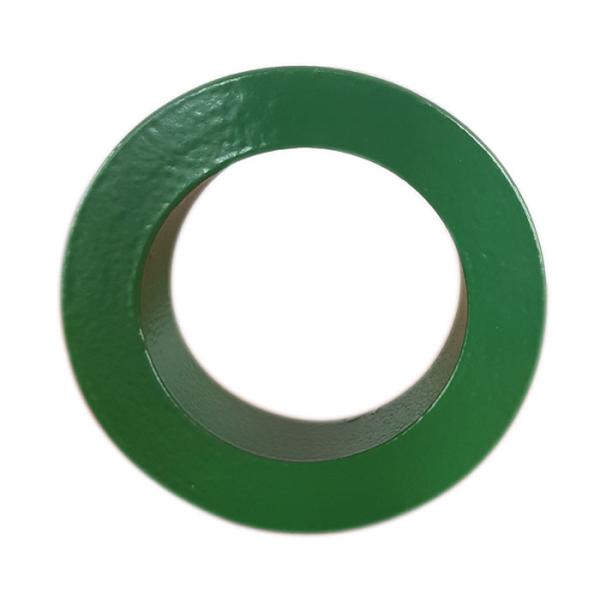

Green Resinated Nanocrystalline Amorphous Core For Transformer Core

  • 1
  • 2

Brand Name : OHMALLOY

Model Number : 1K107

Certification : ISO9001-2008

Place of Origin : China(Shanghai)

MOQ : 50kg

Price : negotiable

Payment Terms : L/C, T/T,

Supply Ability : 50000kg/month

Delivery Time : 7 days

Packaging Details : 100kg/wooden case

Material : 1K101 and 1K107

Thickness : 0.02mm, 0.027mm

Shiled material : Plastic, Stainless steel

Package : Wooden case

Width : 50mm

Contact Now

Green Resinated Nanocrystalline Amorphous Core for Transformer Core

Common Mode Transformer Core Material 1K107 Strip With High Magnetic PermeabilitySingle and three phase power line and all kinds of power supply EMI common mode filter

  • Be made from nanocrystalline strip
  • High magnetic permeability low coercive force- increase device insertion loss, reducing the volume
  • High Saturation magnetic induction - Resistance to saturated ability, apply to interference occasions of large current
  • Good frequency characteristic - has better inhibition action to wide frequency range of noise

l Good temperature stability - under -55～130℃ for long-term work

Basic parameters Ultracrystallite iron core
Saturation magnetic induction Bs/T 1.25
Residual magnetic induction Br/T 0.4～0.7
Initial permeability μ0 ＞8×104
Maximum permeability μm ＞50×104
Coercive force A/M <2
Curie temperature ∕℃ 570
Continuous operating temperature range -50～130℃

Performance index

100K 500K 1M 10M 30M

Nanocrystalline

 -14.25db -24.26db -26.76 db -34.28db -34.85db
Ferrite material -14.49db -32.83db -36.37 db -26,49db -14.49db

Green Resinated Nanocrystalline Amorphous Core For Transformer Core
